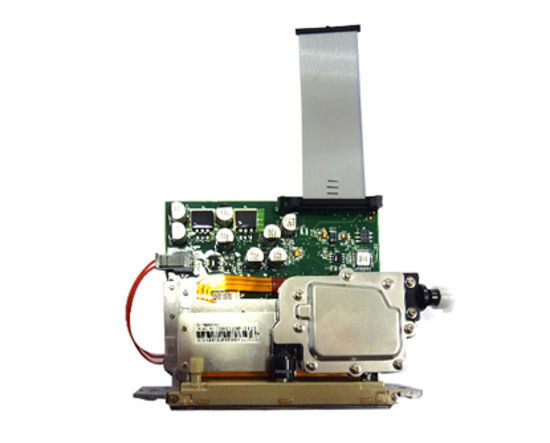

This EFI Vutek ASM, Jetpack UV Print Head Grey Scale Platinum is suitable for VUTEk GS-series printers. This printhead includes the heating element and the smoothing electronic board. The jetpack also includes a set of two Jet Clamps (part number 45083572 / 45093679 / 45095093) and screws to install and aligne the printheads on the Vutek printer. This is the original VUTEk part (number replacing numbers 45083572 / 45093679 / 45095093 / 45093679 / 45084621). This is the latest upgraded head that comes with the connector.
Technical Specifications
- Drop size: 12pl
- Grey Scale levels: 7
- Nozzles: 508 nozzles
- Firing Frequency: 18 kHz
- Active Print Width: 72 mm
- Damper: integrated, quick dry break connector
- Ink type: UV
This printhead carries a manufacturer warranty. Country of origin : Japan
The following items are expressly excluded from warranty coverage:
defects in printers related, in any way, to the use of any non-original or DIGINK inks or ink cartridges and nozzle clogging
defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
defects related to improper loading of media
all other defects, failures or damage not considered manufacturing defects
defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
